If your Dyson DC44 is dying after just a few minutes of use — or won't turn on at all — the battery is almost certainly the problem. The good news is that a replacement battery is a fraction of the cost of a new vacuum, and swapping it out takes less than five minutes.
This guide covers everything you need to know: how to tell if your DC44 battery is actually dead, which replacement battery fits your specific model, the critical difference between Type A and Type B batteries, and how to install it.
Symptoms of a Dying Dyson DC44 Battery
The DC44 uses a 22.2V lithium-ion rechargeable battery pack. Like all lithium-ion cells, it loses capacity over time — typically after 2–4 years of regular use. Here's what a failing DC44 battery looks like:
- Runtime has dropped dramatically. A healthy DC44 battery should give you roughly 20 minutes on normal mode and about 8 minutes on MAX/boost mode. If you're getting under 10 minutes on normal or the vacuum dies within a couple of minutes on MAX, the battery has degraded significantly.
- The vacuum cuts out mid-use. If the DC44 shuts off during cleaning and the blue LED light flashes (or turns red), the battery can no longer deliver enough current under load. This is different from a clog or filter issue — if it happens even after cleaning the filter, it's the battery.
- It won't turn on at all. If the DC44 doesn't respond when you press the trigger even after sitting on the charger overnight, the battery has likely reached end of life. Before replacing it, check that the charger LED lights up when plugged in — if the charger itself is dead, the battery may just be deeply discharged rather than failed.
- The battery gets unusually hot during charging. Some warmth is normal, but if the battery pack feels hot to the touch while charging, the cells are deteriorating. This is a sign to replace it sooner rather than later.
Which Dyson DC44 Replacement Battery Do You Need?
This is where most people get tripped up. The Dyson DC44 was manufactured with two different battery types — Type A and Type B — and they are not interchangeable. Buying the wrong type is the single most common mistake people make when replacing a DC44 battery.
Here's how to tell them apart:
Type A (snap-in): The battery snaps into the handle with a push-button release. It clicks into place and can be removed by pressing a tab or latch. The connector has a narrower pin arrangement.
Type B (screw-in): The battery slides into the handle and is secured with a single screw. There is no snap or click mechanism — you tighten a screw to hold it in place. The connector is wider with a different pin layout.
How to check which one you have: Remove the battery from your DC44 and look at how it attaches to the vacuum. If there's a screw holding it in, you have Type B. If it snaps in and out, you have Type A. You can also look at the label on your existing battery — it will often say "Type A" or "Type B" directly on the sticker, or list one of these OEM part numbers:
- Type A part numbers: 917083-01, 917083-03
- Type B part numbers: 917083-05, 917083-09, 965557-03
If you order a Type B battery and your vacuum takes Type A (or vice versa), it physically will not fit. The connectors and mounting points are different. Always verify before ordering.
The DC44 Battery Also Fits These Other Dyson Models
The DC44 shares its battery platform with several other Dyson cordless models. If you have any of the following vacuums, the same replacement battery will work:
- Dyson DC31
- Dyson DC31 Animal
- Dyson DC34
- Dyson DC34 Animal
- Dyson DC35
- Dyson DC35 Animal
- Dyson DC35 Multi Floor
- Dyson DC35 Exclusive
- Dyson DC44 Animal
- Dyson DC44 Animal Fuchsia
- Dyson DC44 Animal Total Clean
- Dyson DC44 Exclusive
- Dyson DC45 (Type B only)
Just make sure you match Type A to Type A and Type B to Type B across all of these models — the same A/B distinction applies to the entire DC31–DC45 family.

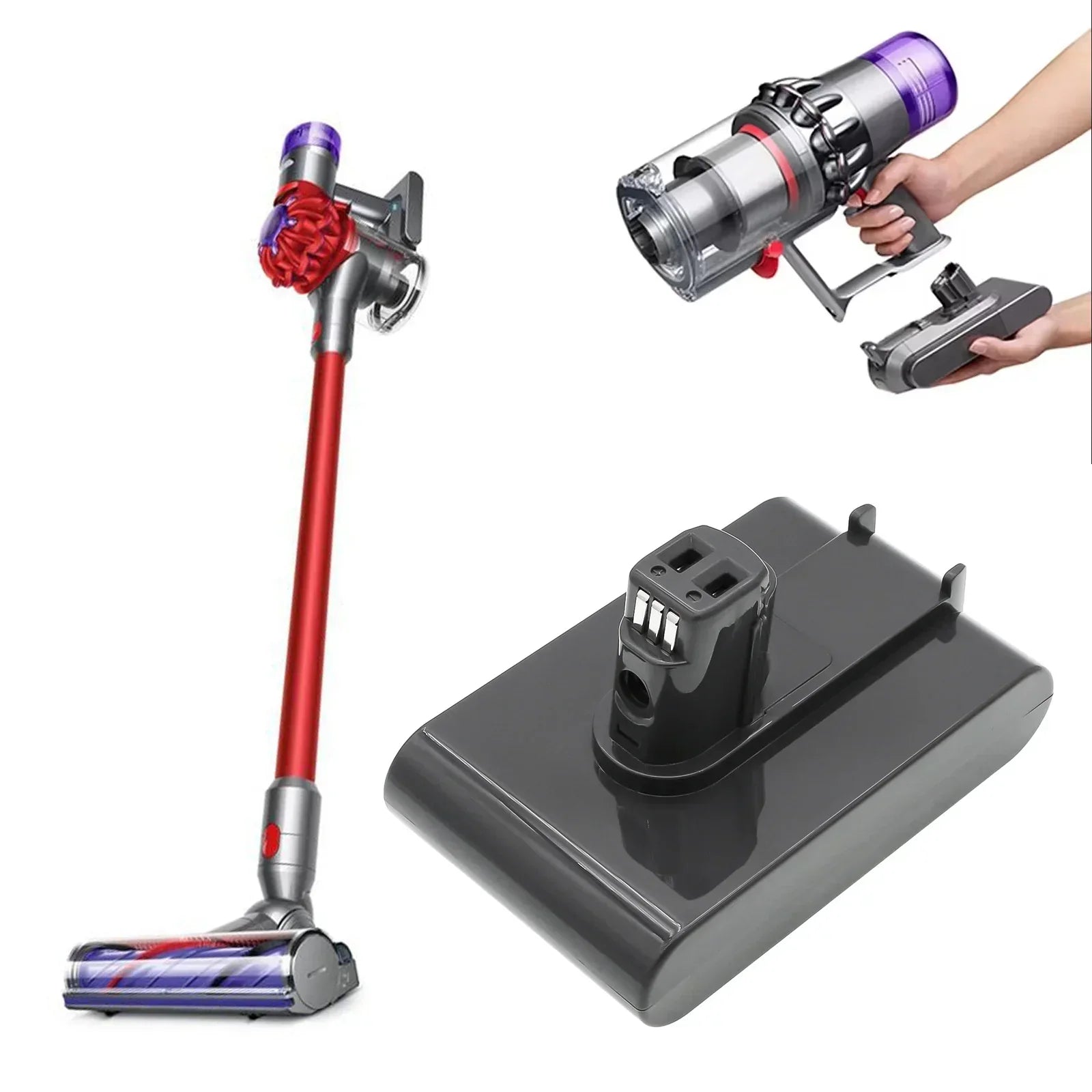

Replacement Battery Specs
Here are the key specs to look for in a DC44 replacement battery:
| Spec | Value |
|---|---|
| Voltage | 22.2V |
| Chemistry | Lithium-ion (Li-ion) |
| OEM Capacity | 1,500 mAh (standard) |
| Upgraded Capacity | 2,000–2,500 mAh (extended runtime options) |
| Common OEM Part Numbers | 917083-01, 917083-03, 917083-05, 917083-09, 17083-2811, 17083-4211, 18172-01-04, 965557-03 |
Aftermarket replacement batteries are often available in higher capacities than the original Dyson battery (2,000 mAh or 2,500 mAh vs. the stock 1,500 mAh). A higher-capacity pack will give you longer runtime per charge. However, some higher-capacity batteries are physically thicker than the original, which means they may not fit in the wall-mounted docking station charger. If you use the wall dock, check whether the replacement battery is dock-compatible or requires charging with the plug-in cable charger instead.
How to Replace the Battery
Replacing the DC44 battery is straightforward and requires no special tools (just a Phillips-head screwdriver for Type B).
For Type A (snap-in):
- Make sure the vacuum is off and unplugged from the charger.
- Press the release tab or button on the battery.
- Slide or pull the old battery out of the handle.
- Slide the new battery in until it clicks into place.
- Charge fully before first use.
For Type B (screw-in):
- Make sure the vacuum is off and unplugged from the charger.
- Use a Phillips-head screwdriver to remove the single screw securing the battery.
- Slide the old battery out of the handle.
- Slide the new battery in and replace the screw. Don't overtighten — snug is enough.
- Charge fully before first use.
The whole process takes about 2–3 minutes.
Tips for Getting the Most Life Out of Your New Battery
Once your new battery is installed, a few habits will help it last as long as possible:
Calibrate it on the first use. Charge the new battery fully (the charger light will turn green or go off), then use the vacuum until it shuts off from low battery. Charge it fully again without interruption. This helps the battery's internal circuitry accurately gauge its capacity.
Don't leave it on the charger indefinitely. Modern lithium-ion batteries have overcharge protection, but storing the vacuum on the charger 24/7 for months at a time can still stress the cells. If you won't be using the vacuum for an extended period, charge it to around 50% and store it off the charger.
Keep it out of extreme heat. Don't store the vacuum (or a spare battery) in a hot garage, near a heater, or in direct sunlight for prolonged periods. Heat is the biggest enemy of lithium-ion battery longevity.
Use it regularly. Lithium-ion batteries actually degrade faster when left sitting unused for long stretches. Using and charging the vacuum at least once every few weeks keeps the cells healthier than letting it sit in a closet for months.
When to Replace the Charger Too
If your old battery completely failed (zero charge, won't turn on at all), it's worth checking whether the charger is also working properly. Plug the charger into an outlet — the LED on the charger itself should light up even without a battery connected. If the charger LED doesn't light up, the charger may be the issue (or a contributing factor), and you should replace it alongside the battery.
We carry Dyson DC44 compatible chargers as well. Search "DC44 charger" on our site to find the right one.
Stop Thinking About a New Vacuum — Just Replace the Battery
A new Dyson cordless vacuum costs $300–$600+. A replacement DC44 battery costs a fraction of that and brings your vacuum back to full performance. If the motor still runs fine and the suction is strong when the vacuum is powered, the battery is the only thing that needs replacing.
